Features

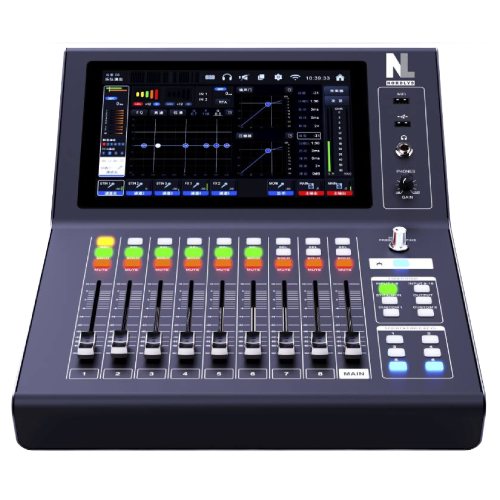

- 10" touchscreen with a resolution of 1280×800.
- 9 x 100mm stroke faders.
- A total of 28 signal inputs, including 16 XLR analog input channels (including 4 COMBO interfaces), 8 channels USB sound card input, 1 set of stereo U disk playback, 1 set of stereo Bluetooth playback.
- A total of 20 physical signal output channels, including 8 XLR analog output channels, 8 channels USB sound card output, 1 set of stereo TRS monitoring headset output, 1 set of U disk recording
- © 16 mono input buses and 3 stereo input buses, supporting user-defined configurations of physical input ports to input buses.
11 mixing buses, including 6 mono buses, 2 effect buses, 2 mono MTRX matrix output buses and 1 group of stereo main output buses. - Input channels support 48V phantom power switch, analog gain, digital gain, phase control, 0-1000ms delay, panning/balance, volume control, channel label customization, 4-band parametric equalization (parametric/high shelf/low shelf/low pass selectable), high-pass filter, noise gate, compressor, etc.
- Input channels feature a gain finder for quick optimal gain adjustment.
- Output channels support functions like 0-1000ms delay, panning/balance, volume control, channel tag customization,
- 4-band parametric EQ (parametric/high shelf selectable), high-pass/low-pass filters, 31-band GEQ, compressor, etc.Scene and effect banks can be saved and recalled.
- O 2 effect buses offer 8 effects (reverb, echo, chorus, wow, tremolo, distortion, pitch shift and flanger) for flexible use.
- O 4 DCA and 6 mute groups for efficient signal routing control.Real-time spectrum display with RTA functionality.
- Supports LAN and external USB/WiFi module connections for iOS, Android and PC control.
- Multi-language support with auto-adaptive language on the APP.
- 2-level panel locking for preventative misoperations.
IN1-16 - Input Characteristics
| Input Impedance | Balanced 1OKΩ |
| Frequency Response | 20Hz~20KHz (+/-0.5dB) |
| Maximum Input Level | 22dBu |
| Phantom Power | +48V (IN1 to IN16) |
| Gain | Analog gain: OdB ~ 64dB Digital gain: -24dB ~ +24dB |
| S/N R | 113dB (Gain = OdB, A-weighted) |
| Dynamic Range | 114dB (Gain= OdB, A-weighted) |
OUT1-8 - Output Characteristics
| THO | 0.01%(Gain =OdB and Output =OdBu, unweighted) |
| Frequency Response | 20Hz~20KHz (+/-0.5dB) |
| Maximum Output Level | +22dBu |
| Output Impedance | 1000 |
| Crosstalk | -110dB @1KHz |
| Background Noise | -86dBu (Gain = OdB) |
Headphone Characteristics
| Output Impedance | 500 |
| Maximum Output Level | +20dBu |
| Background Noise | -81dB (Potentiometer= MAX, Volume= OdB) |
Talkback Microphone
| Input Impedance | Unbalanced 3KΩ, Balanced 6KΩ |
| Maximum Input Level | +6.5dBu (Potentiometer = MAX, Talkback Volume = MAX) |
Digital 1/0
| Digital 1/0 | Bluetooth, USB stereo, 8x8 sound card USB stereo playback and recording, supports MP3, WAV, and FLAC file playback |
| USB Format | 3.0 |
| Recording Format | wav |
| Channel Crosstalk | -110dB |
| Display | 10.1" touchscreen with 1280x800 resolution |
| Motorized Faders | 9 Stroke electric push rod potentiometer with 100mm |
| System | Linux |
| Network | LAN network port and external USB NIC module, supporting IOS, Android, PC control |
Hardware
| Power | AC 100~240V 50/60Hz |
| Power Consumption | 50W |
| Operating Temperature | 5°C~40°C |
| Dimensions(W X D X H) | 481 mm, 342 mm, 143 mm |
